Gluing Machine
Created with Pixso.

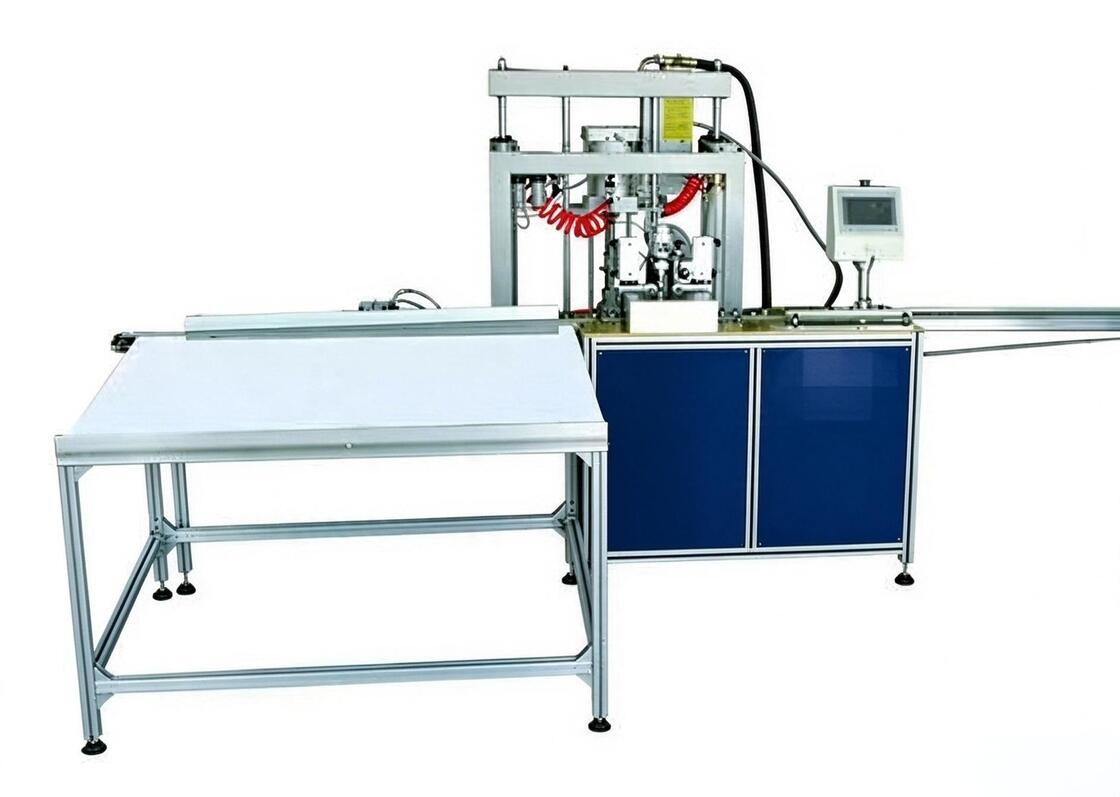

High Quality Gluing Machine for Solar Panel Production

High Quality Gluing Machine for Solar Panel Production

High Quality Gluing Machine for Solar Panel Production

Brand Name: YNTECH
MOQ: 1
Price: 50000-100000
Payment Terms: T/T
Supply Ability: 40 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
After-sales Service:
24 Hours Online
Customization:
Available
Warranty:
1 Year
Applicable Industries:
New Construction, Capacity Expansion, Upgrading And Technical Retrofit Of PV Module Encapsulation Lines.
Packaging Details:
Wooden Package
Product Description

Equipment Parameters



Max. processing length

2300mm
Min. processing length 400 mm
Max. processing width 50 mm
Min. processing width 17 mm
Normal dispensing speed 3–4 sec/m
Adhesive specification 270 kg drum adhesive (drum inner diameter approx. 570 mm)
Power supply 220V 50Hz
Air supply 0.5 MPA
Weight 450 kg
Power 1.0 KW



Equipment Performance

1.Controlled by CNC system. Manual loading, automatic unloading, automatic positioning and automatic glue dispensing.
2.No manual holding of the frame during dispensing. The glue bead is uniform and full.
3.No secondary glue filling is required after framing by conventional framing machines, saving labor, time and adhesive.
4.It adopts a pneumatic glue pump feeding system for stable and reliable performance with simple and convenient operation.
