Factory Direct Supply Low Cost Solar Panels Production Line Automatic High Precision Trimming Machine

Name: Factory Direct Supply Low Cost Solar Panels Production Line Automatic High Precision Trimming Machine
Brand: YN Solar PV Equipment Co., Ltd.
SKU: YN-XBJ100
Price: 75000.00 USD
Availability: InStock

Brand Name:	YNTECH
Model Number:	YN-XBJ100
MOQ:	1
Price:	50000-100000
Payment Terms:	L/C
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

wooden package

Product Description

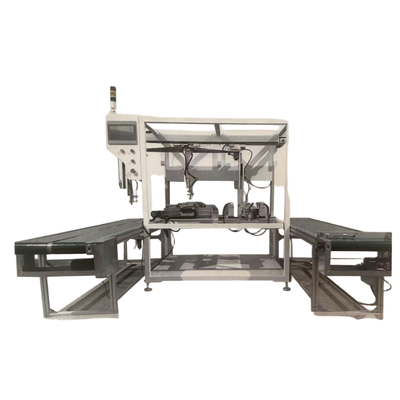

PV Module Edge Trimming Machine

Equipment Parameters

Product Specifications	Min: LW (100100mm)Max: LW (370210mm)
Working Speed	Trimming cycle averages 5 seconds per piece
Defect Rate	Less than 0.1%
Equipment Power	3KW
Equipment Voltage	220V~240V
Air Pressure	0.45~0.6 MPa
Operating Environment	Operating temperature: -10 ~ 40°C, humidity ≤85%RH
Machine Dimensions	1550(L)950(W)1800(H)mm
Conveyor Line Dimensions	1800(L)450(W)800(H)mm
Machine Weight	500kg
