Layup&Bussing Machine
Created with Pixso.

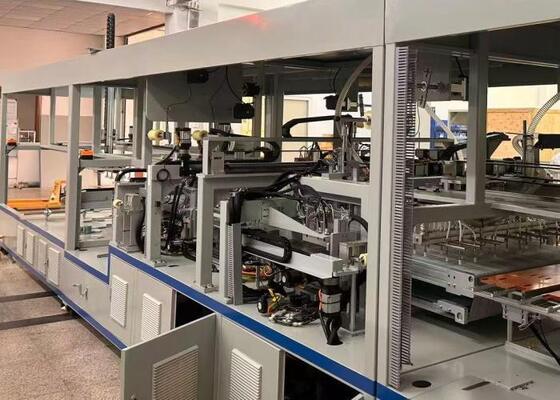

Auto Soldering Lay-up Bussing Machine for High-Volume Production Needs Solar Panel Production Line

Auto Soldering Lay-up Bussing Machine for High-Volume Production Needs Solar Panel Production Line

Auto Soldering Lay-up Bussing Machine for High-Volume Production Needs Solar Panel Production Line

Brand Name: YNTECH
Model Number: YN-PH800
MOQ: 1
Price: 51000-110000
Payment Terms: L/C
Supply Ability: 50 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Key Selling Points:
High Precision, Stable Operation, Low Failure Rate
Suitable Industries:
Solar Energy Equipment Manufacturing
Spare Parts:
Spare Parts Available
Packaging Details:
Wooden Package
Product Description
Equipment Performance

1. This machine adopts the latest high-frequency electromagnetic welding technology,
compatible with all conventional monocrystalline and polycrystalline solar cells.
2. It supports layout assembly and busbar welding for 1-string, 2-string, 3-string and 4-string cell
configurations.
3. Compatible with double-end busbar welding and dual-string lead wire welding of solar cell strings.
4. Applicable cell string dimensions: width 78mm–210mm, length 200mm–700mm.
5. Main grid & ribbon compatibility: supports welding for cells with two or more main grid lines.
6. Applicable busbar specifications: thickness 0.12mm–0.3mm, width 2mm–6mm.
7. Integrated functions include automatic glass loading, EVA film laying, cell string layout and busbar
soldering, lead wire welding, insulating strip pasting, power testing, cell string heating and positioning,
as well as backsheet covering and lead wire penetrating.


Equipment Parameters

specifications string length cycle time
length of the string 200-700 10-13S
cell width 78-210 10-13S
yield rate(A-grade yield rate) ＞97%
cell width 52mm-210mm
battery string spacing 1mm-10mm
power supply rated power 15KW
air source 0.5-0.8MPA

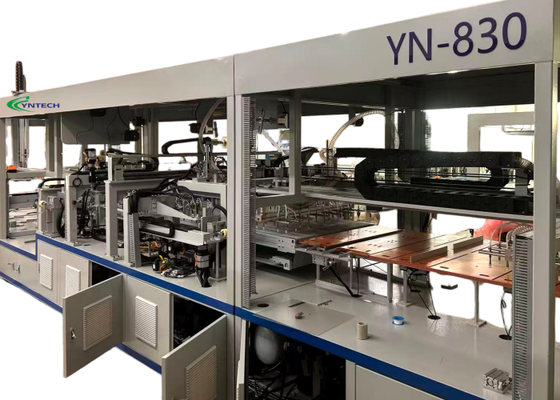

YN-830 device dimensions 8500mm(L)*1700mm(W)*2000mm(H)
