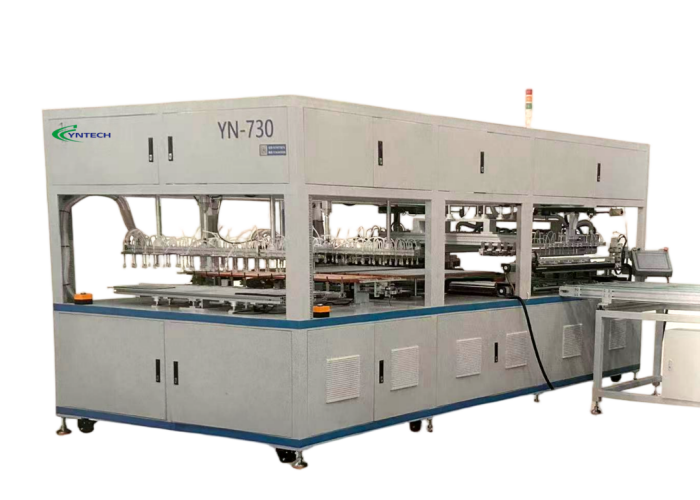

Custom Fully Automatic Solar Panels Assembly Line Layup-Bussing Integrated Machine

Brand Name:	YNTECH
Model Number:	YN-PH700
MOQ:	1
Price:	50000-100000
Payment Terms:	T/T
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Application:

PV / New Energy Industry

Spare Parts:

Spare Parts Available

Key Selling Points:

High Precision, Stable Operation, Low Failure Rate

Packaging Details:

Wooden Package

Product Description

Equipment Performance

1.This machine adopts an integrated design of translational glass loading and EVA film stretching.

The integrated layout and busbar soldering system adopts the latest high-frequency electromagnetic

welding technology, compatible with all conventional monocrystalline and polycrystalline solar cells.

2. Compatible glass dimensions: maximum 1960*990mm, minimum 400*400mm.

3. Compatible EVA film width: 400mm (minimum) to 990mm (maximum).

4. Cell string compatibility: Supports double-end busbar soldering for 2-string, 3-string and 4-string

layouts, as well as string isolation strips and lead wire soldering.

5. Cell string specifications: String width 78–210mm, string length 300–2000mm (compatible with

cells with two or more grid lines).

6. Compatible busbar width: 3–6mm

Equipment Parameters

Glass length (mm)			Glass width (mm)			Capacity/H
1960			990			80–100
400			400
Specifications	String length	Hourly output	Panel lamination	Specifications	String length	Hourly output	Panel lamination
on board	900–2000	80–120	1 out of 1	two board	300–900	160–180	1 out of 2
Yield rate(A-grade yield rate)	>97%
Cell width	78 mm – 210 mm
Power supply	peak power	15 KW
	rated power	10 KW
Air source	0.5 – 0.8 MPA
YN-730 dimension	4150 (L) × 2720 (W) × 2000 (H) mm
