Bussing Machine
Created with Pixso.

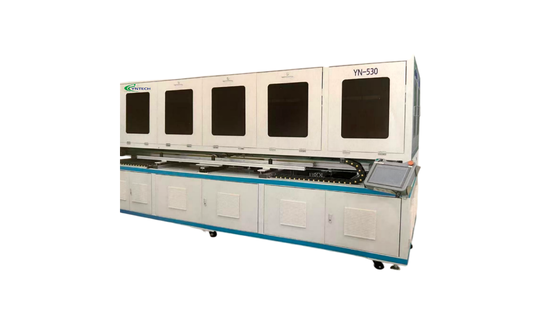

High Stability Efficient Solar Panel Busbar Bussing Machine Custom Fully Automatic PV Module Production Line

High Stability Efficient Solar Panel Busbar Bussing Machine Custom Fully Automatic PV Module Production Line

High Stability Efficient Solar Panel Busbar Bussing Machine Custom Fully Automatic PV Module Production Line

Brand Name: YNTECH
Model Number: YN-HL500
MOQ: 1
Price: 55000-120000
Payment Terms: L/C
Supply Ability: 50 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Packaging Details:
Wooden case
Product Description

Equipment Performance

  1. This machine adopts state-of-the-art electromagnetic welding technology, compatible with all standard monocrystalline and polycrystalline solar cells.
  2. Supports 1, 2, 3, 4, 5, 6, 8, 10, 12 cell strings for both end and midpoint busbar interconnection.
  3. Cell specification: Compatible with all grid types for 125–210 mm solar cells.
  4. Busbar specification: 4–8 mm.
  5. Cell string specification: 200–2382 mm.

Equipment Parameters


Specifications Length of string (mm) Speed (strings/h) Puzzle board
1–6 strings 1000–2400 90 1-out-of-1
1–6 strings 500–1000 180 1-out-of-2
Pass Rate ＞99%
Cell width 125 mm–210 mm
Cell string spacing 1 mm–10 mm
Power Source  Peak Power 15 kW
Power Source  Rated Power 10 kW
Air Source 0.5~0.8 MPa
Device Dimensions 4200 mm(L) × 2400 mm(W) × 1830 mm(H)
Machine Weight 2430 kg
