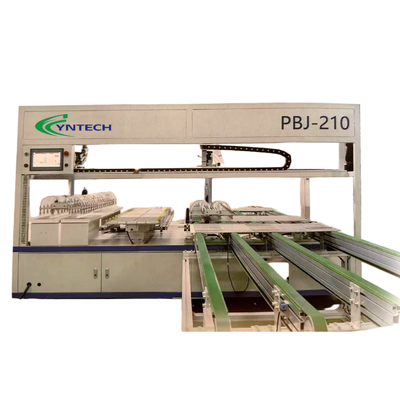

Solar Panel Layup Machine PV Module Assembly Equipment for Solar Panel Manufacturing Line

Name: Solar Panel Layup Machine PV Module Assembly Equipment for Solar Panel Manufacturing Line
Brand: YN Solar PV Co., Ltd.
SKU: PBJ-210
Price: 75000.00 USD
Availability: InStock

Brand Name:	YNTECH
Model Number:	PBJ-210
MOQ:	1
Price:	50000-100000
Payment Terms:	L/C
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

Wooden case

Product Description

Equipment Performance

Compatible with all specifications of solar cell main grid line spacing.
Compatible with 3, 4, 5, 6 cell string plate layout (minimum glass width: 540 mm), and 8, 10, 12 cell string half-cell process plate layout.
Strong compatibility for cell sizes, supporting 156mm, 158mm, 166mm, 182mm and 210mm cells.
Quick and convenient specification switching for different grid lines and cell widths.
Compatible with regular plate layouts from cut cells to full cells; string length ranges from 750 mm to 2300 mm.

Equipment Parameters

Work Speed	15s single cycle	200~480 strings/hour
AB Fragmentation Rate	≤5‰
Cell Gap	1 mm - 10 mm
String Gap	1 mm - 10 mm
Power Source	Peak Power	4 kW
	Rated Power	2.5 kW
Air Source	0.5~0.8 MPa
Device Dimensions	Main frame: 2800mm(L) × 2500mm(W) × 2000mm(H)
