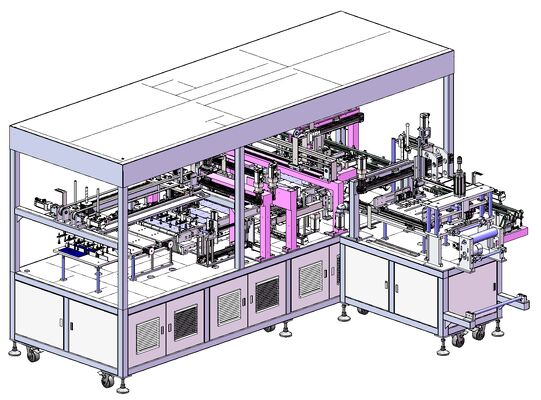

Automated Glass Loading and EVA Laying/Wiring Assembly Integrated Production Line for Solar Panels

I. Equipment Performance:

1. This equipment utilizes the most advanced high-frequency electromagnetic welding technology and is compatible with all standard monocrystalline and polycrystalline solar cells;
2. Compatible with busbar connection at both ends of the cell string, lead welding, and insulation tape application;
3. Cell string specifications: String width 52–105 mm, string length 100–350 mm, compatible with two or more busbars;
4. Busbar specifications: 2–6 mm;
5. Main busbar and lead-in strip requirements: Compatible with welding of two or more busbars;
6. Busbar specifications: Thickness 0.12–0.3 mm, width 2–6 mm;
7. This equipment includes automatic glass loading, EVA placement, busbar layout, lead wire welding, insulation strip application, power testing, cell string heating and positioning,
and backplate covering with lead wire insertion.
8. Single-string fly-wire function.
